SUMMARY OF MACHINE
SP-YK1650H Automatic Pallet Strapping Machine is widely used for Carton boxes Strapping, Wrapping and etc…

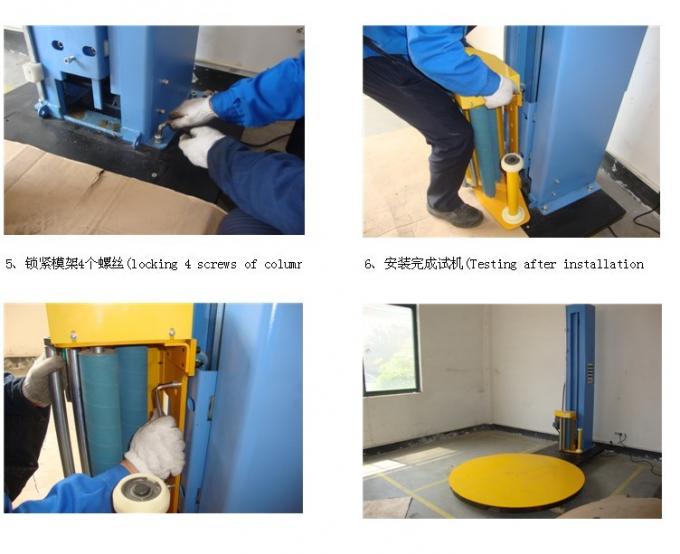

MACHINE PHOTOS
THE MAIN FEATURES:
Control System
- PLC control
- Photo-eye auto-height sensing pallet height
- Separate top, bottom & up-down Wrap Counter options
- Overwrap can be set;
- Reinforce wrap times is set to better secure 2 loads placed on top of each other
- Film Tension Control button on the panel
- Separate start, pause and emergency stop buttons
- Manual carriage up/down
- Turntable Speed
- Carriage up/down speed control
- Manual/automatic exchangeable
Turntable
- 1800 mm Diameter
- 80mm from floor to top of turntable
- Drive by 1.5 kw motor with reduction gearbox ,Soft start
- Film carriage
- Pre-stretch ratio is up to 200-300% to save film;1 meter can be 3 meter max.
- Open carriage door for easily change and thread film
- Film delivery variable speed by separate AC Drive Motor
- Electronic film tension control adjustment on panel
- Film dancer-bar with variable speed output
Film carriage Drive
- Heavy duty double-chain carriage lift, calmly and safely
- Film carriage variable speed by frequency changer
- works under 0.23 kw motor with reduction gearbox *working capacity: 20-40 pallets / hour

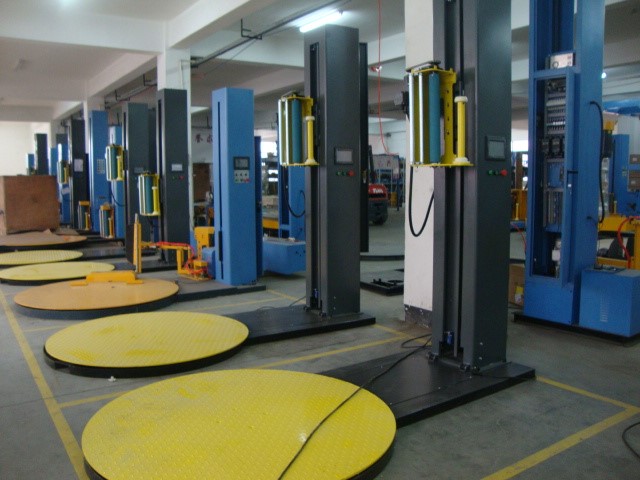

MACHINE PHOTOS
THE MAIN PARAMETERS:
| No. | Description | Specification |
| 1 | Turntable and height | 1650mm dia. and machine height 2150mm |
| 2 | Pallet Wrapping size | 1200*1200*1800 |
| 3 | mast height | 2250mm |
| 4 | Turntable Height | 80mm |
| 5 | power supply | 220v, 50hz 1ph |
| 6 | weight capacity | 2000kg |
| 7 | ring speed | 0~12RPM |
| 8 | AC Drive/PLC | FATEK PLC / holip inverter/ |
| 9 | processing/photo eye/promixity | schneider/pepperl+fuchs/yangming |
| 10 | control pannel | english button |
| 11 | turntable motor | OTG |
| 12 | film thread | door open system ,easy to wear film before run |
| 13 | film thread motor | OTG |
| 14 | updown motor | KINGLONG |
| 15 | Pre stretch bearing ratio | 1:02 |
| 17 | Pre stretch bearing ratio | 200-400% adjustable |
| 18 | control pannel | Yuanxu brand |
| 19 | machine size | 2600*1800*2400mm |
| 20 | wooden crate | 2760 *1750*750mm *2 packages |
